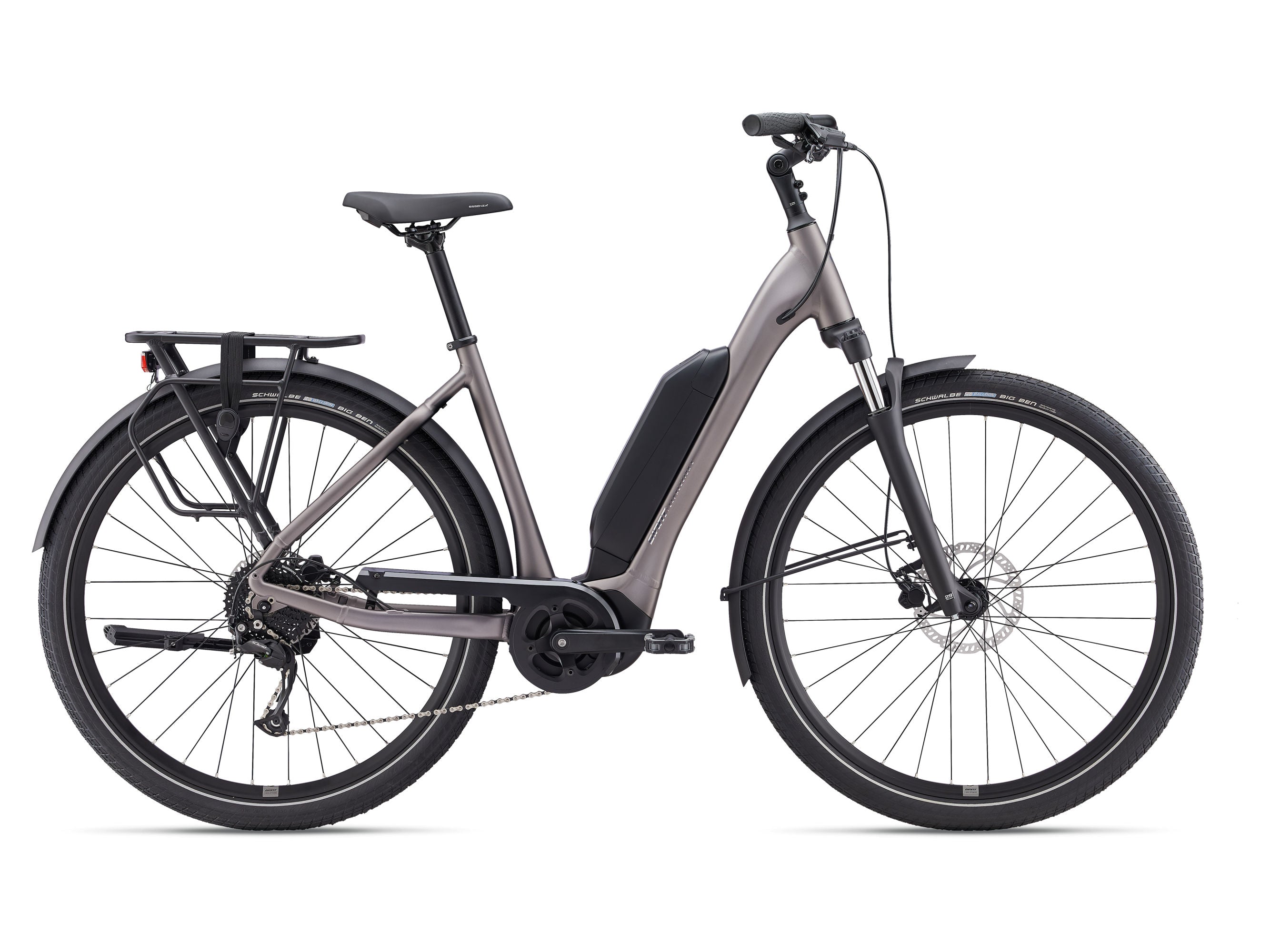

Giant Expression E+ Hybrid Electric Bike - Early Espresso

The Giant Expression E+ Hybrid Electric Bike is the ideal lifestyle e-bike, equipped with a smooth 55Nm Yamaha powered SyncDrive Core motor and a 500Wh EnergyPak Smart battery the Expression provides electric assistance up to speeds of 25 kilometres per hour with a theoretical range of 100 kilometres making light work of wherever you choose to ride.

The Giant Expression E+ E-Bike in the eye catching Early Espresso colourway is available to buy now in Melbourne at Casey Cycles. Shop online or visit our local bike shop in the southeast suburb of Cranbourne to view our range of Giant electric bikes in person today.

KEY PERFORMANCE FACTORS

SMART SUPPORT

• The new SyncDrive Core 55Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

COMFORT AND CONTROL

• A step-thru frame design with a 63mm suspension fork, powerful disc brakes and extra-wide 55mm tyres combine for smooth confidence and control on a variety of road surfaces and conditions.

URBAN MOBILITY

• The durable aluminium frame is fully equipped with a rack, kickstand, fenders and a chain guard.

RANGE

How far can I expect to ride on a single battery charge?

• The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
• The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

SPEC

• Motor: SyncDrive Core, 55Nm, powered by Yamaha.

• Controller: RideControl One Ant+.

• Display: N/A.

• Battery: EnergyPak Smart 500Wh.

• Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with
• Australian regulations (EN15194); no motor support above this speed.

• Sizes: S, M, L.

• Colour: Early Espresso.

• Frame: ALUXX aluminium, monotube, Semi Integrated battery, low step through design.

• Fork: SR Suntour Mobie A32 DC Coil, 63mm travel, 15x100mm.

• Handlebar: Alloy, 30° back sweep 31.8mm.

• Grips: Giant Comfort Ergo Microtech Plus Lock-on.

• Stem: Alloy angle adjustable S:90mm, M:90mm, L:110mm.

• Seatpost: Giant 30.9mm, 2-bolt Micro Adjust.

• Saddle: Selle Royal Vivo Essenza Plus.

• Pedals: Platform.

• Shifters: Shimano Altus.

• Front Derailleur: N/A.

• Rear Derailleur: Shimano Alivio, 9-speed.

• Brakes: Tektro HD-M275, hydraulic disc, (F) 180mm, (R) 160mm.

• Brake Levers: Tektro HD-M275.

• Cassette: Shimano HG-200,11-36T, 9-speed.

• Chain: KMC E9 Sport.

• Crankset: Forged Alloy, 38T.

• Bottom Bracket: N/A.

• Rims: Giant Alloy.

• Hubs: Shimano HB-TC500-15 100x15 [F] Shimano FH-QC300-HM [R].

• Spokes: Stainless steel, e-bike optimised.

• Tyres: Schwalbe Big Ben, 28x2.15", Wire Bead with reflective stripe.

• Extras: KSA18 direct mount kickstand.

• NSW CertificationULL-104280-EA.

• Lighting: N/A.

• Lock: N/A.

• Carrier: MIK rack. System bag & basket compatible.

• Fender/Chainguard: Aluminium.
