Apollo Transfer 20 Hybrid Bike - Matte Slate/Black
Small
$579.95
Sale price
$579.95
Regular price
$899.95
Skip to product information

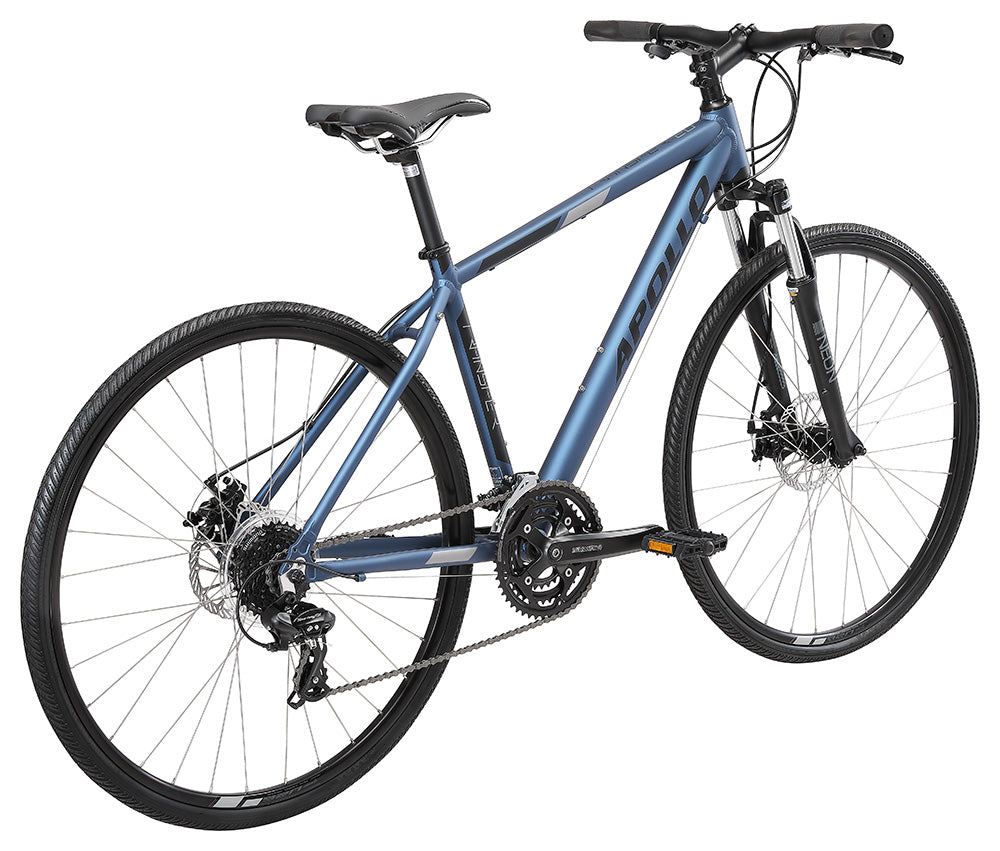

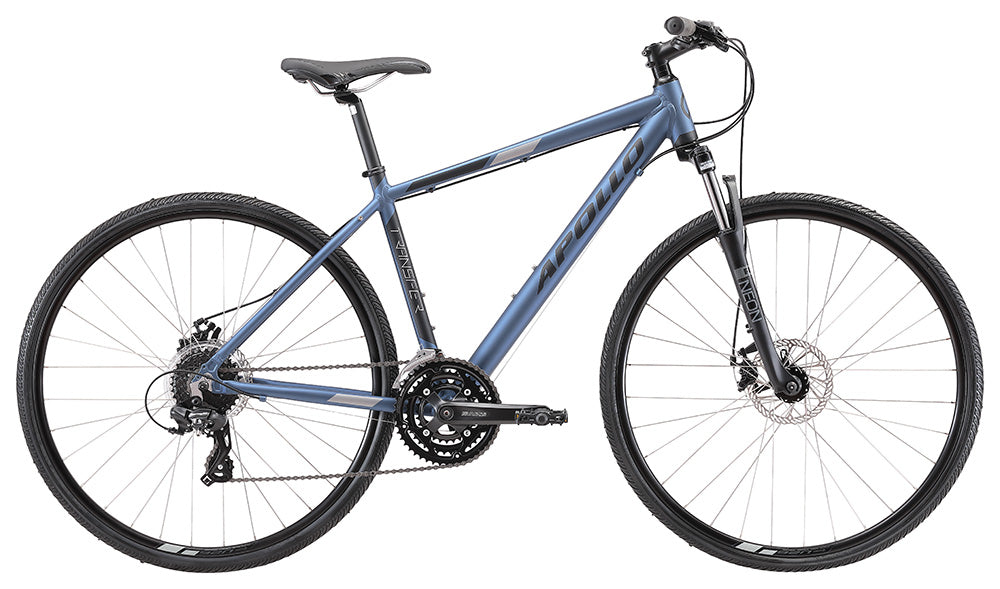

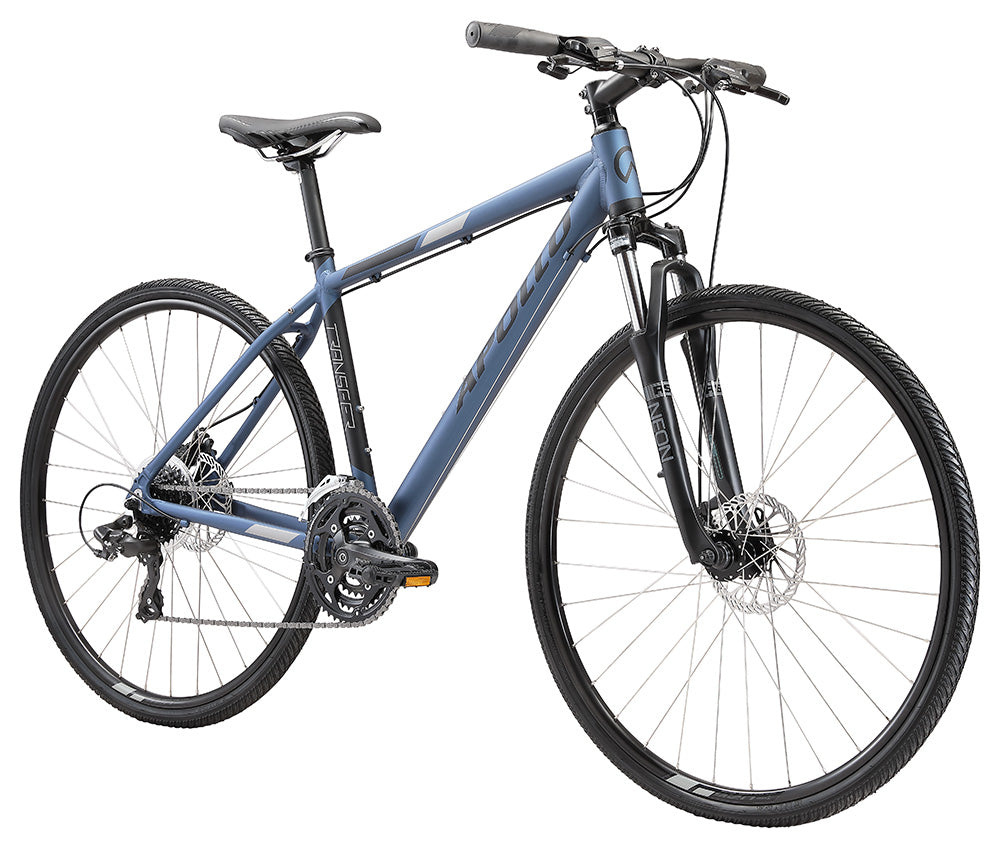

Apollo Transfer 20 Hybrid Bike - Matte Slate/Black
SKU: 22029
$579.95
Regular price
$899.95
Sale price
$579.95
PICK UP IN-STORE
Our extensive range of bicycles and electric scooters are available for in-store purchase or online click and collect only. All bikes/scooters sold are professionally assembled, safety checked and ready to ride. A free first service is also included with each new bike sold, to be redeemed in-store within three months of the date of purchase.
For further information please call our team on 03 5996 1049 or visit us in-store at 108 High Street, Cranbourne in Melbourne's southeast suburbs.
DESCRIPTION
The Apollo Transfer 20 hybrid bike is a versatile ride designed for use on roads and bike paths to rail trails and everything in between! Equipped with a lightweight alloy frame, RST Neon suspension fork with 60mm travel and lockout/preload adjustment to smooth out the bumps and conserve energy on hill climbs, the Shimano 3 x 8 speed gear system provides a wide range of gears to tackle just about any terrain while stopping is handled by JAK-8 mechanical disc brakes with 160mm rotors for safe, effective braking and 700C wheels with 38C multi terrain tyres roll fast on sealed surfaces and provide plenty of grip on the loose stuff!
Buy your new Apollo Transfer 20 hybrid bicycle in Melbourne today at Casey Cycles Cranbourne. Shop online with click and collect or visit our local bike store today to check out our range of hybrid bikes in person.
SPEC
- Frame: 6061 butted alloy frame with integrated head tube, pannier mounts and replaceable derailleur hanger.
- Fork: RST Neon ML suspension fork, 60mm travel with lockout and preload. alloy crown with alloy lowers.
- Headset: A-head semi integrated 1 1/8" with 10mm cone spacer.
- Handlebars: Alloy low riser, bore: 31.8mm, W: 600mm wide, sweep: 6°.
- Grips: Kraton ERGO comfort grip.
- Headstem: Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm.
- Crankset: Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm.
- Bottom Bracket: Cartridge bottom bracket.
- Pedals: Low profile high impact resin.
- Front Derailleur: Shimano FD-TY710.
- Rear Derailleur: Shimano RD-TX800 8 speed.
- Shifters: Shimano EF-500 Ez Fire 24 speed.
- Cassette: Shimano 8 speed cassette 12-32T.
- Chain: KMC Z-7.
- Brakes: JAK-8 mechanical disc brakes with 160mm rotors.
- Wheels: 700c Weinmann X-M1 double wall rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes.
- Tyres: Kenda Urban multi terrain, 700 x 38c wire bead.
- Saddle: Apollo Ergotech dual density saddle.
- Seatpost/Clamp: Alloy 27.2mm micro adjust post with alloy clamp.
GEOMETRY AND SIZING
| S | M | L | XL | |
| Frame Size | 15.5" | 18" | 20" | 22" |
| A – Stack (mm) | 578 | 590 | 606 | 620 |
| B – Reach (mm) | 379 | 400 | 415 | 424 |
| C – Stand Over Height (mm) | 407 | 439 | 470 | 502 |
| D – Effective Top Tube Length (mm) | 550 | 575 | 600 | 620 |
| E – Seat Tube Centre to Top (mm) | 400 | 457 | 508 | 560 |
| F – Seat Angle | 73.5° | 73.5° | 73° | 72.5° |
| G – Head Tube Length (mm) | 100 | 110 | 125 | 140 |
| H – Head Angle | 71° | 71.5° | 72° | 72° |
| I – Wheel Base (mm) | 1044 | 1062 | 1077 | 1093 |
| J – Chain Stay Length (mm) | 440 | 440 | 440 | 440 |
| K – BB Drop (mm) | 50 | 50 | 50 | 50 |
| L – Fork Rake (mm) | 44 | 44 | 44 | 44 |
| M – Axle to Crown (mm) | 470 | 470 | 470 | 470 |
| Rear Dropout Spacing (mm) | 135 | 135 | 135 | 135 |
| Approx. Rider Height | 158 - 168cm 5'2" - 5'6" |
165 - 173cm 5'5" - 5'8" |
170 - 178cm 5'7" - 5'10" |
175 - 190cm 5'9" - 6'3" |
