Apollo Exceed 20 Disc Flat Bar Road Bike - Matte Black/Charocal/Blue
Small
$849.95
Sale price
$849.95
Regular price
$1,299.95
Skip to product information

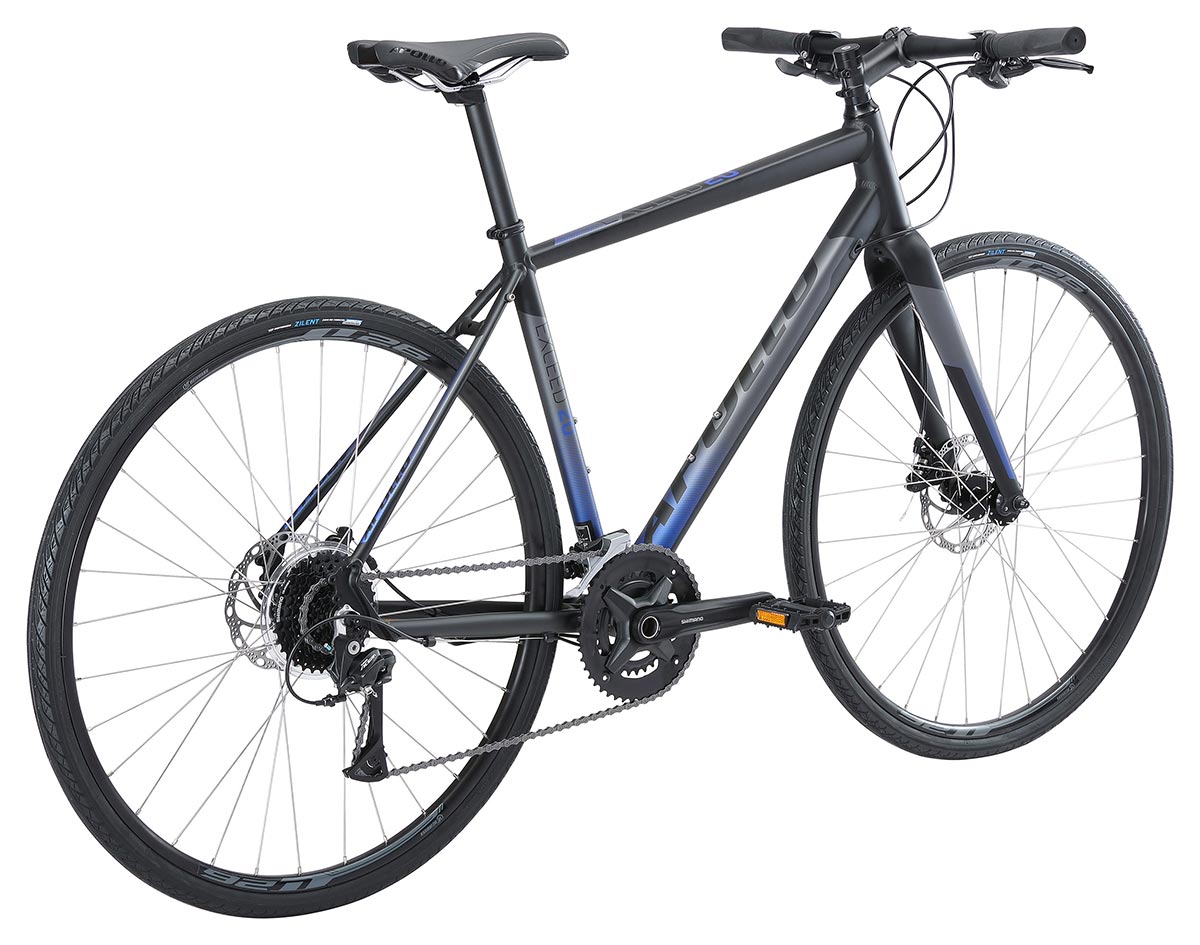

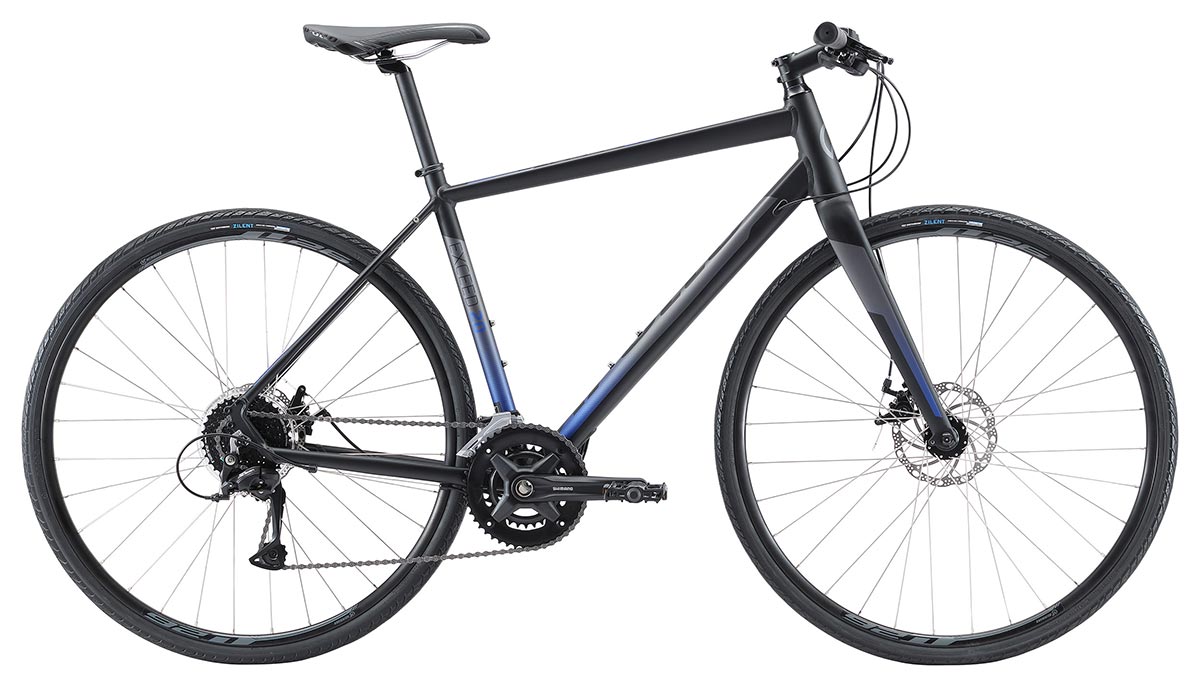

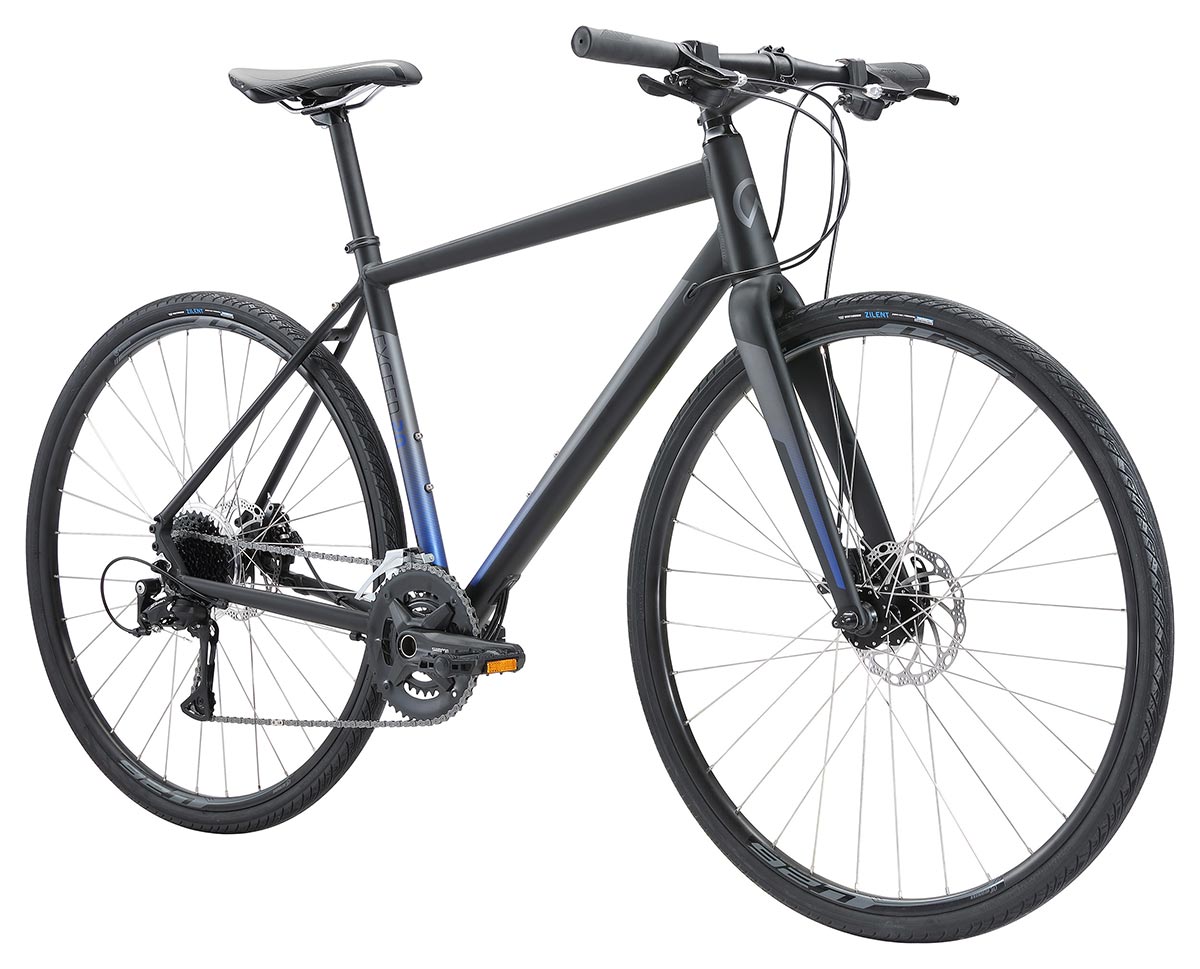

Apollo Exceed 20 Disc Flat Bar Road Bike - Matte Black/Charocal/Blue
SKU: 22087
$849.95
Regular price
$1,299.95
Sale price
$849.95
PICK UP IN-STORE
Our extensive range of bicycles and electric scooters are available for in-store purchase or online click and collect only. All bikes/scooters sold are professionally assembled, safety checked and ready to ride. A free first service is also included with each new bike sold, to be redeemed in-store within three months of the date of purchase.
For further information please call our team on 03 5996 1049 or visit us in-store at 108 High Street, Cranbourne in Melbourne's southeast suburbs.
DESCRIPTION
The Apollo Exceed 20 Disc flat bar road bike is ideal for weekday commuters navigating the busy city streets, built around a lightweight aluminium frame and carbon fork, the Exceed 20 is equipped with a Shimano 2 x 9 speed drivetrain, Tektro mechanical disc brakes with 160mm rotors front and rear and smooth rolling 700C wheels wrapped in Veetire Zilent 35C tyre. Built in pannier mounts offer additional versatility making the Exceed 20 a capable trekking bike for weekend adventures in addition to the weekday commute.
The Apollo Exceed 20 Disc flat bar road bicycle is available to buy now in Melbourne at Casey Cycles. Shop online or visit our local bike shop located in the Southeast Melbourne suburb of Cranbourne to check out our range of commuter and city bikes in person today.
SPEC
- Frame: Superlite butted 6061 aluminium frame with integrated head tube, internal cable routing, pannier mounts and replaceable forged derailleur hanger.
- Fork: Carbon straight blade flat mount disc specific fork with tapered 1-1/8 to 1-1/2" headtube.
- Headset: A-head semi integrated 1-1/8" tapered with 10mm cone spacer.
- Handlebars: Alloy flat bar, bore: 31.8mm, W: 600mm, sweep: 5°.
- Grips: Kraton ERGO comfort grip.
- Headstem: Alloy 4 bolt stem, bore: 31.8mm L: S=75mm, M/L=90mm, XL=105mm.
- Crankset: Shimano FC-MT210 46 x 30T L: S/M=170mm, L/XL=175mm.
- Bottom Bracket: Cartridge bottom bracket.
- Pedals: Low profile high impact resin.
- Front Derailleur: Shimano FD-T3000 Acera.
- Rear Derailleur: Shimano RD-T3000 Acera.
- Shifters: Shimano SL-M3000 2 x 9 speed.
- Cassette: Shimano 9 speed cassette 11-32T.
- Chain: KMC Z-9.
- Brakes: Tektro C550 mechanical disc brakes, flat mount with 160mm rotors.
- Wheels: 700C custom Weinmann U-26 32 hole double wall A/V rims, alloy disc hubs and stainless spokes.
- Tyres: Veetire Zilent, 700 x 35C wire bead.
- Saddle: Apollo contoured saddle.
- Seatpost/Clamp: Alloy 27.2mm micro adjust post with alloy clamp.
GEOMETRY AND SIZING
| S | M | L | XL | |
| Frame Size | 17.5" | 19.5" | 21" | 22" |
| A – Stack (mm) | 551 | 581 | 605 | 631 |
| B – Reach (mm) | 397 | 413 | 420 | 432 |
| C – Stand Over Height (mm) | 406 | 443 | 469 | 496 |
| D – Effective Top Tube Length (mm) | 555 | 585 | 605 | 625 |
| E – Seat Tube Centre to Top (mm) | 450 | 500 | 530 | 560 |
| F – Seat Angle | 74.0° | 73.5° | 73.0° | 73.0° |
| G – Head Tube Length (mm) | 130 | 160 | 185 | 210 |
| H – Head Angle | 72.0° | 72.5° | 72.5° | 73.0° |
| I – Wheel Base (mm) | 1030 | 1050 | 1065 | 1080 |
| J – Chain Stay Length (mm) | 430 | 430 | 430 | 430 |
| K – BB Drop (mm) | 70 | 70 | 70 | 70 |
| L – Fork Rake (mm) | 50 | 50 | 50 | 50 |
| M – Axle to Crown (mm) | 395 | 395 | 395 | 395 |
| Rear Dropout Spacing (mm) | 135 | 135 | 135 | 135 |
| Approx. Rider Height | 160 – 168cm 5’3" - 5’6" |
165 – 173cm 5’5" - 5’8" |
170 – 178cm 5’7" - 5’10" |
178 – 188cm 5’10" - 6’2" |
